Certificate Audit
The Certificate Audit feature provides a view of certificates that are on BIG-IP systems and provides a mechanism to notify users when certificates are nearing expiration.
By default, the audit feature manages only certificates that are in use by a virtual server on the BIGIP systems.
Certificates that are not in use by a virtual server can be added using the configuration form.
Additionally, certificates, which are in use by a virtual server, can be filtered out with the configuration form.
The certificate information, for each device group, will be populated in accordance to its configuration nightly, but if any certificate information has changed, you will need to manually refresh the device group’s certificate data.

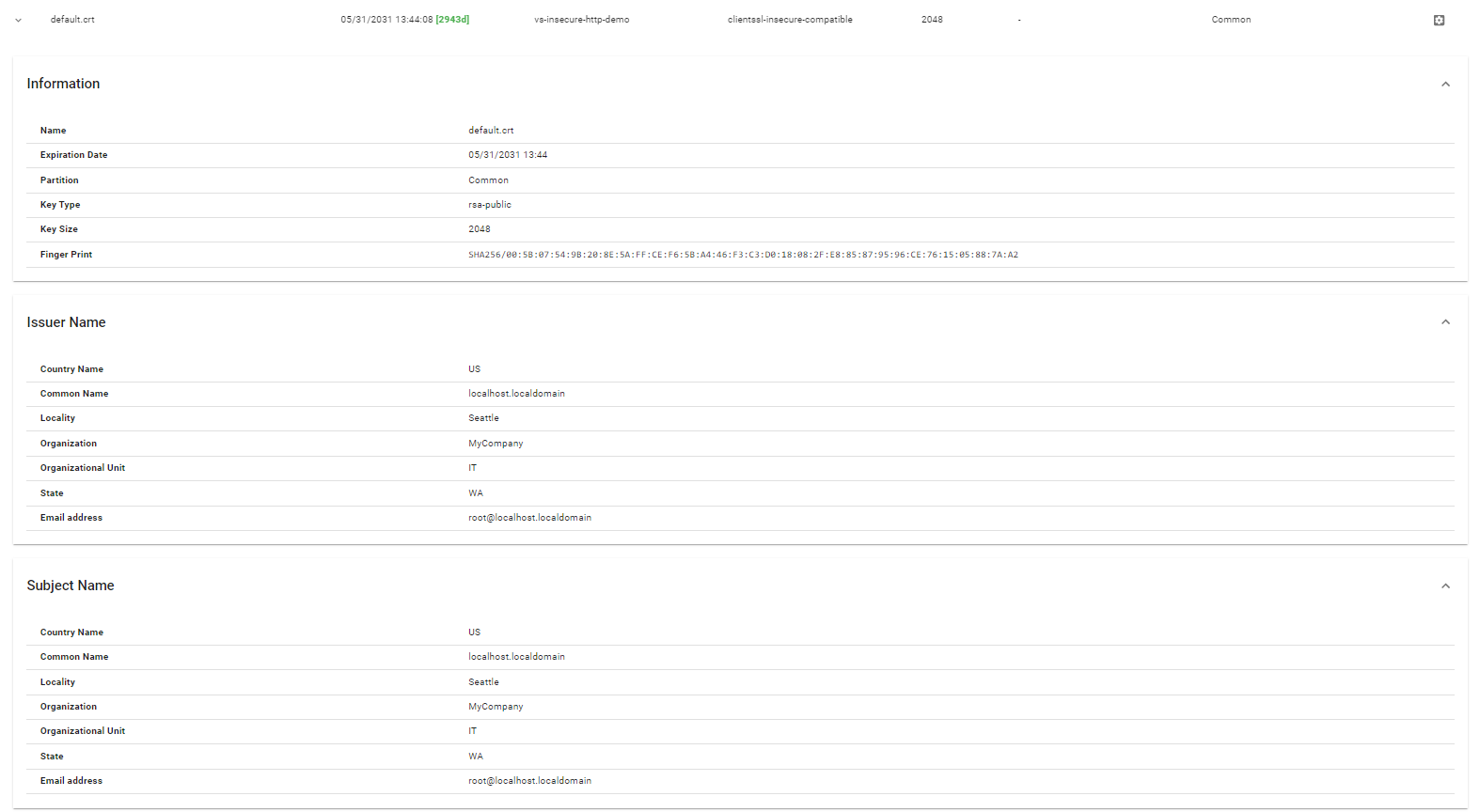

Click on the expand button of the certificate to view its detailed attributes and associated information
To modify a device group’s certificate management configuration, go to the device groups tab and select configuration in the top right corner.
Under the configuration tab the following options are available:
Skipping on issuers or skipping on subjects, requires entries with keys and values.
A list of associated keys definitions are provided in the table below.
Advanced configuration can be configured using the “JSON CODE” button in the lower left hand corner of the configuration screen, though this is beyond the scope of this guide.
Certificates that are not in use by a virtual server can be added using the configuration form.
Additionally, certificates, which are in use by a virtual server, can be filtered out with the configuration form.
The Certificates page can be accessed from the left-hand navigation under ‘Security’.
Viewing Certificates

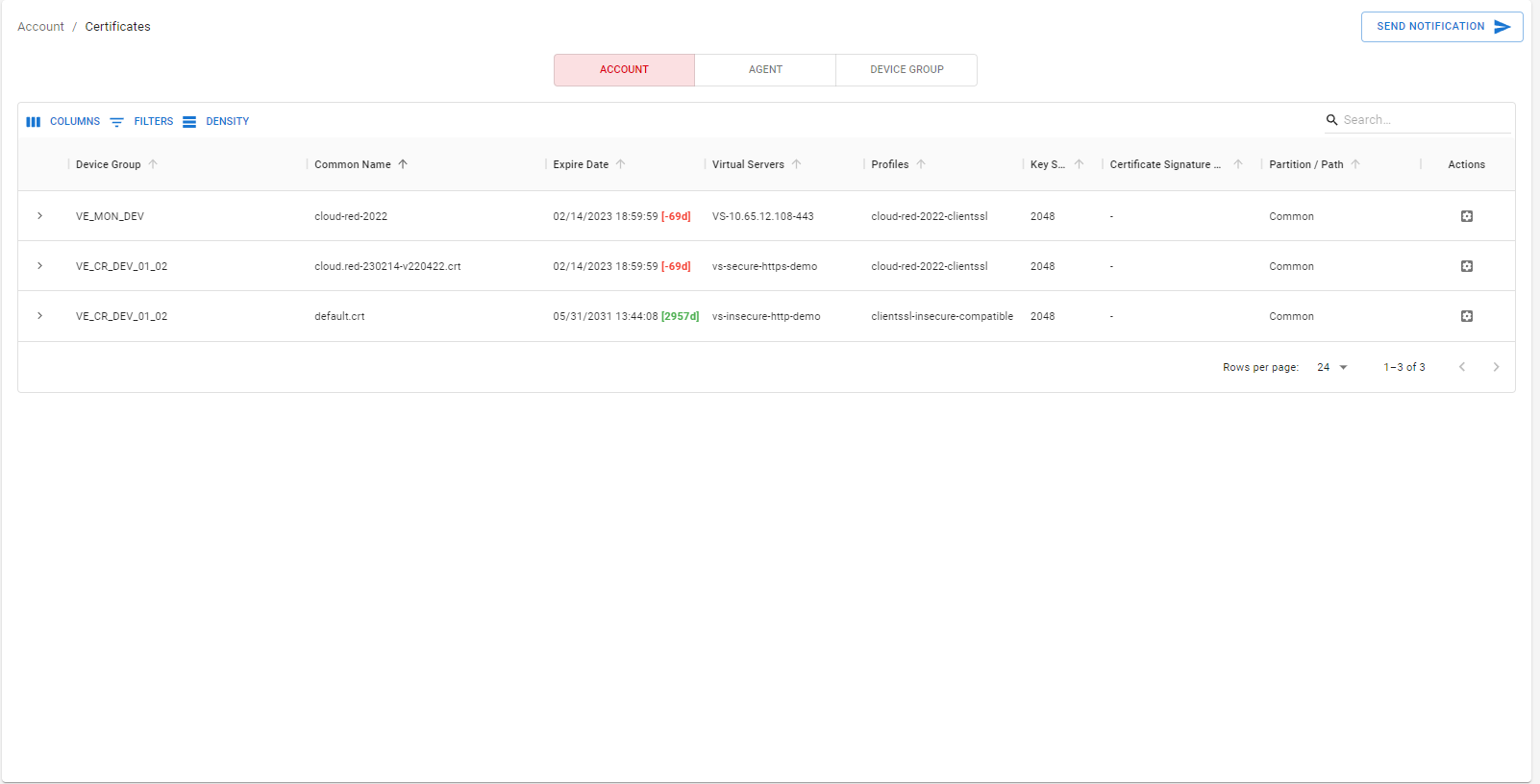

The tool shows managed certificates, listed by Account, Agent, or Device Group.

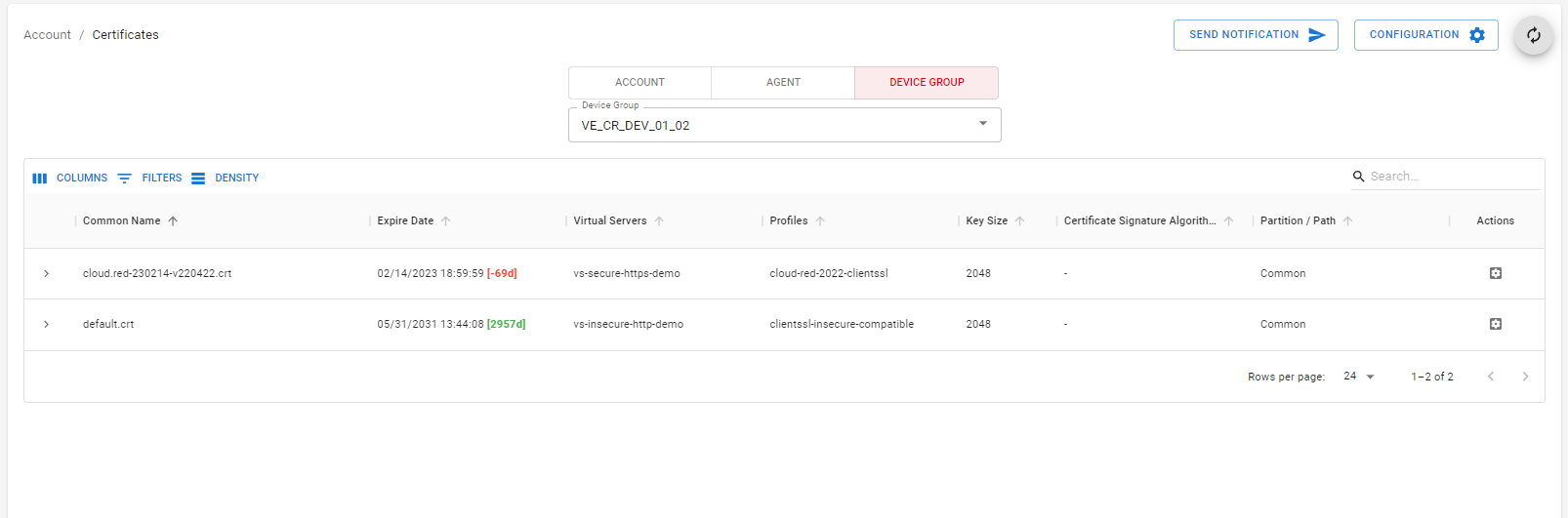

The certificate information, for each device group, will be populated in accordance to its configuration nightly, but if any certificate information has changed, you will need to manually refresh the device group’s certificate data. To get the latest data from a device group, under the ‘Device Group’ section, select the refresh button.
Configuration
Configuration of certificates available to the tool is handled at the device group level.To modify a device group’s certificate management configuration, go to the device groups tab and select configuration in the top right corner.
Note: Access to the configuration form is also available by going to the left panel, selecting “Device Groups”, and selecting the “Certificates Configuration” option under “Actions”.

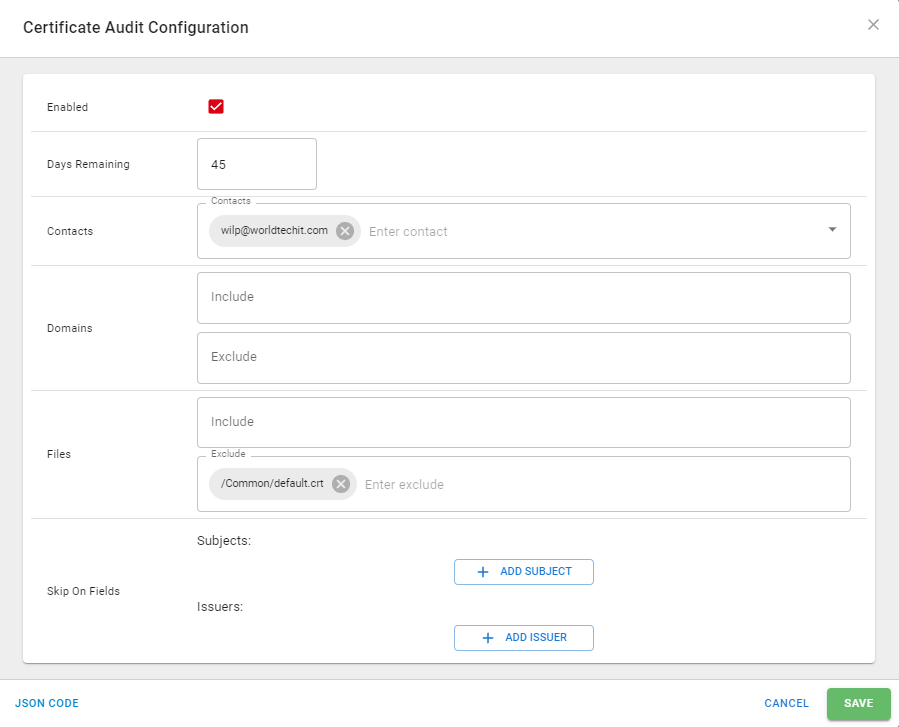

Under the configuration tab the following options are available:
- Enabled / disable the certificate management feature (disabled by default)
- Set the ‘Days Remaining’ for a certificate’s expiration to trigger an automated notification email
- Set who will be sent automated notification emails
- Set domains to include
- Add certificates by domains, which are included in an ssl profile, but the profile is not included in a virtual server
- Please see section below regrading domain filtering syntax
- Set domains exclude
- Filter out certificates by domains, which otherwise were automatically added
- Please see section below regrading domain filtering syntax
- Set files to include
- Add certificates by file name, which are included in an ssl profile, but the profile is not included in a virtual server
- Set files to exclude
- Filter out certificates by file name, which otherwise were automatically added
- Set subjects to exclude (filter out certificates with subjects, which otherwise were automatically added)
- Set issuers to exclude (filter out certificates with issuers, which otherwise were automatically added)
Changes to the configuration require the clicking of the “Save” button to commit the change.
Skipping on issuers or skipping on subjects, requires entries with keys and values. A list of associated keys definitions are provided in the table below.
| Key | Associated field |
|---|---|
| C | Country |
| CN | Common Name |
| L | Locality |
| O | Organization |
| ST | State |

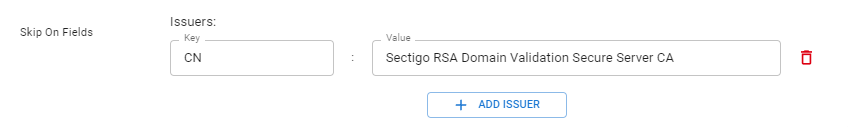

Example: To filter out certificates which have a issuer with common name “Sectigo RSA Domain Validation Secure Server CA”, the following entry would be added:
Advanced configuration can be configured using the “JSON CODE” button in the lower left hand corner of the configuration screen, though this is beyond the scope of this guide. Reminder:
The certificate information, for each device group, will be populated in accordance to its configuration nightly, but if any certificate information has changed, you will need to manually refresh the device group’s certificate data.
To get the latest data from a device group, under the the ‘Device Group’ section, select the refresh button.
The certificate information, for each device group, will be populated in accordance to its configuration nightly, but if any certificate information has changed, you will need to manually refresh the device group’s certificate data.
To get the latest data from a device group, under the the ‘Device Group’ section, select the refresh button.
Configuration
Whether setting domains to include or exclude, domain matching the following rules:- Entries are taken as literal strings
- The literal string entries will exact match against a certificates configured domain name (wild cards are not currently supported)
- The literal string entries will match against a certificates wildcard domain name
