Requirements

  • Blob file storage
  • Blob file Storage container
  • Permissions to create an Image
  • Permission to create a VM from the image
  • Azure Cloud Shell access


​
Copying VHD to Blob Storage

Requirements - gather the required information to supply the following variables
  • CLIENT_STORAGE_ACCOUNT_NAME - Azure storage account, in the subscription, resource group, and location/region you intend on deploying the virtual machine instance
  • CLIENT_BLOB_CONTAINER_NAME - Azure blob storage container, under the aforementioned Azure storage account
  • URI_PROVIDED_BY_WORLDTECHIT - URI provided by WorldtechIT to download the VHD
    You may need to consult your Azure administrator to ascertain the appropriate Azure storage account and blob storage container.

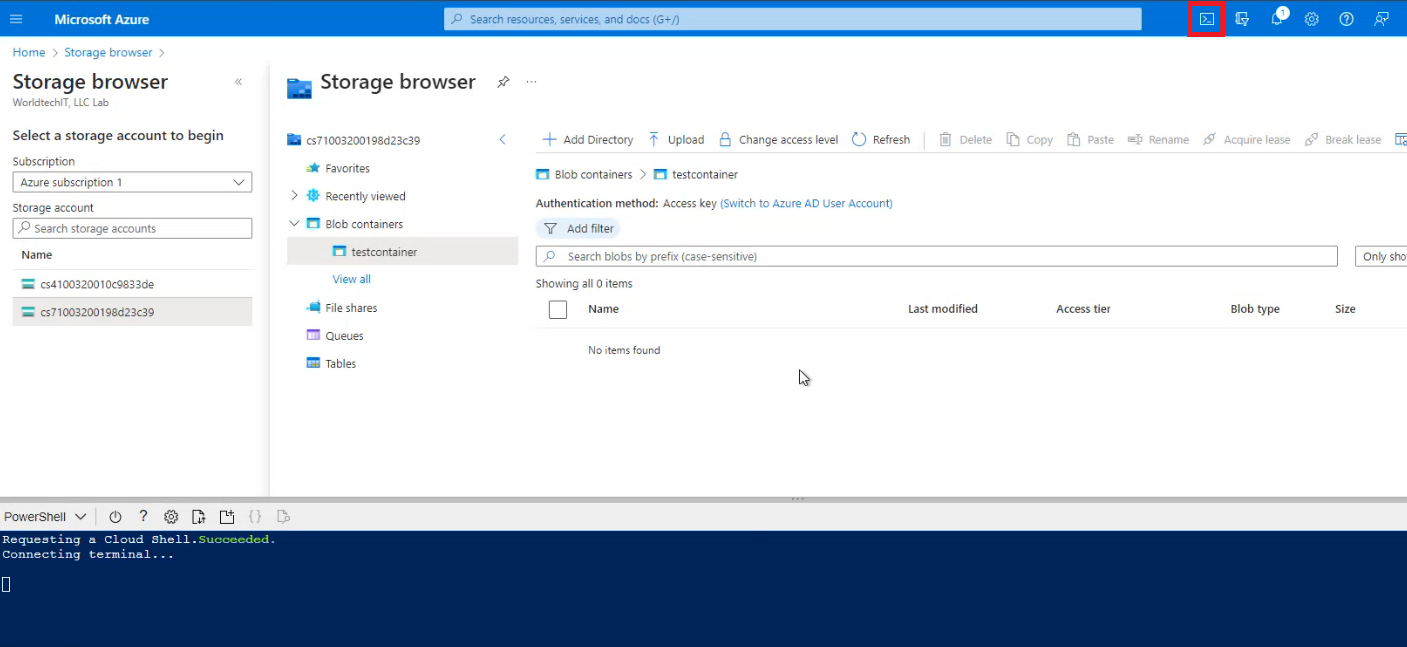

In Azure Portal, launch the Cloud Shell. Insert the following command:
az storage blob copy start --destination-blob CRAGENT_300.vhd --account-name <CLIENT_STORAGE_ACCOUNT_NAME> --destination-container <CLIENT_BLOB_CONTAINER_NAME> --source-uri '<URI_PROVIDED_BY_WORLDTECHIT>'
Note: the subscription and location of the blob storage must match the the subscription and location where you intend on deploying the virtual machine instance
Wait a couple of minutes and validate the VHD has populated into the intended Azure storage account and blob


​
Creating the Image

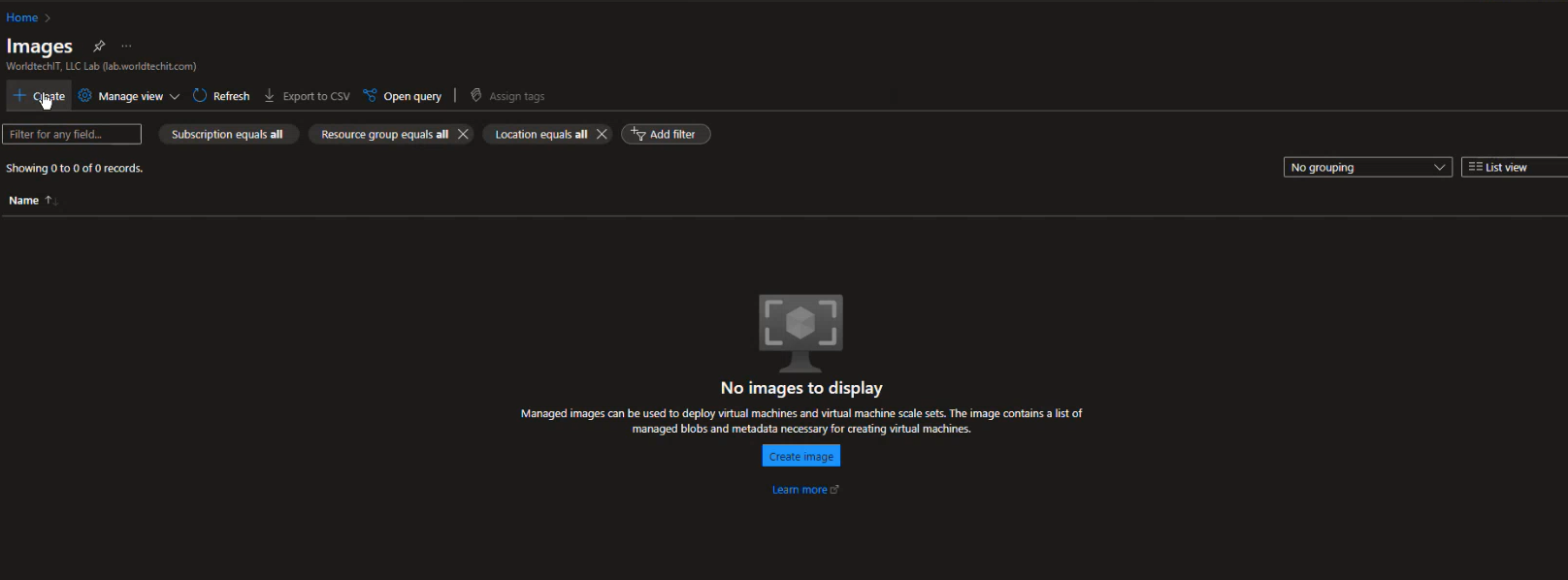

In Azure Portal, lunch ‘Images’.
Click Create Note the following:
  • Name the instance appropriate for your environment
  • The Resource Group must where you intend on deploying the virtual machine instance
  • The Region must match where you intend on deploying the virtual machine instance
  • The OS type should be Linux
  • The VM generation should be Gen 2
  • Under Storage Blob, select the previously used storage account and blob and select the CRAGENT_300.vhd file
  • The account type should be standard SSD
  • Host caching should be read/write

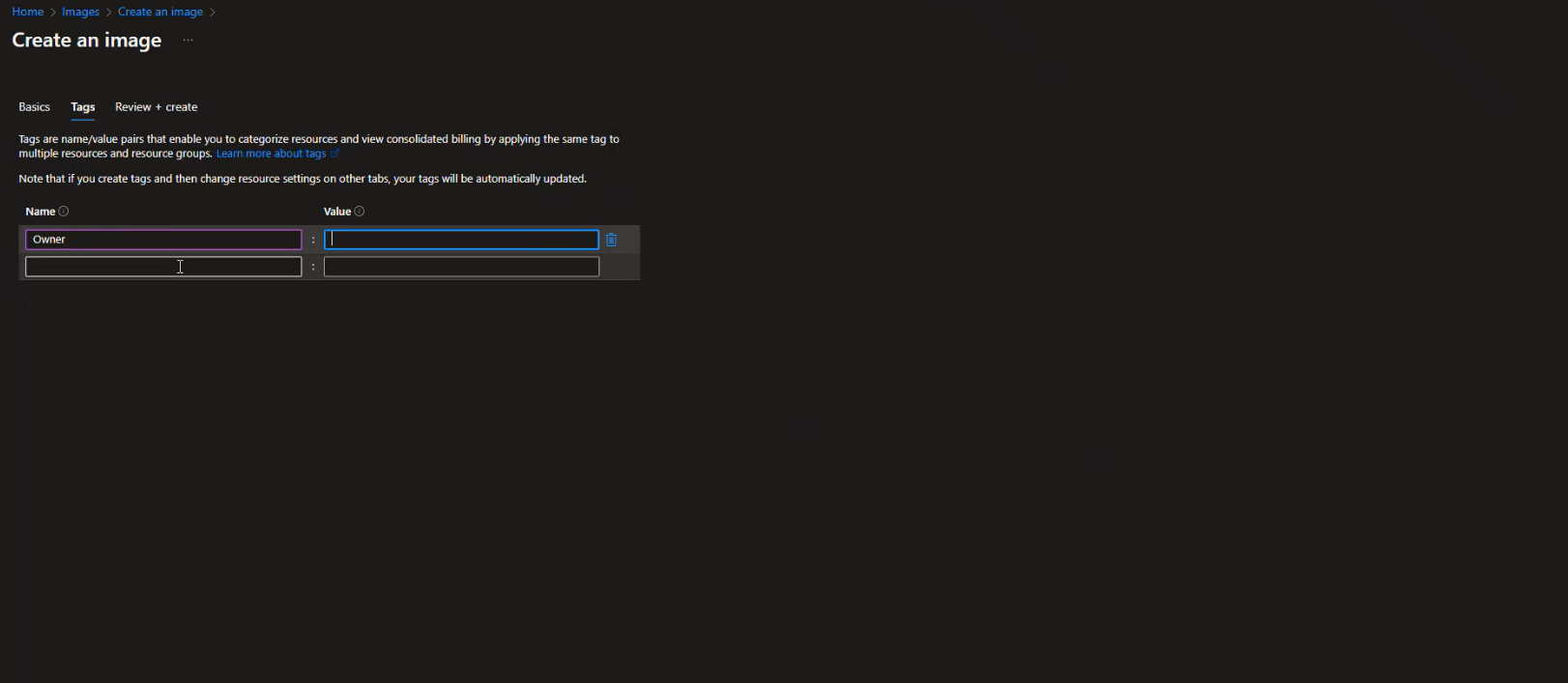

Create a tag appropriate for your environment (Required by Azure)
  • Finish Creating the Image.

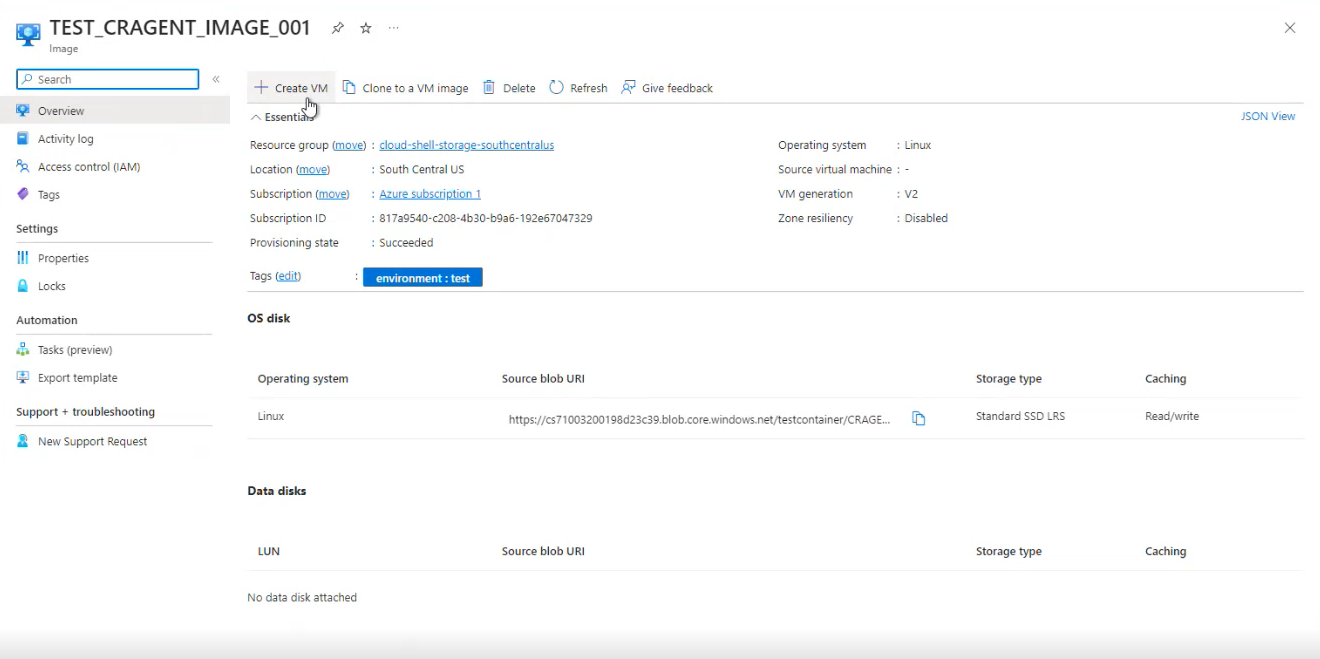

  • When complete, click “Go to resource”


​
Creating the Virtual Machine Instance

From the created image, create the the Virtual Machine Instance. Ensure the Agent Connectivity requirements are met. You can view the connectivity requirements at Agent Connectivity Requirements

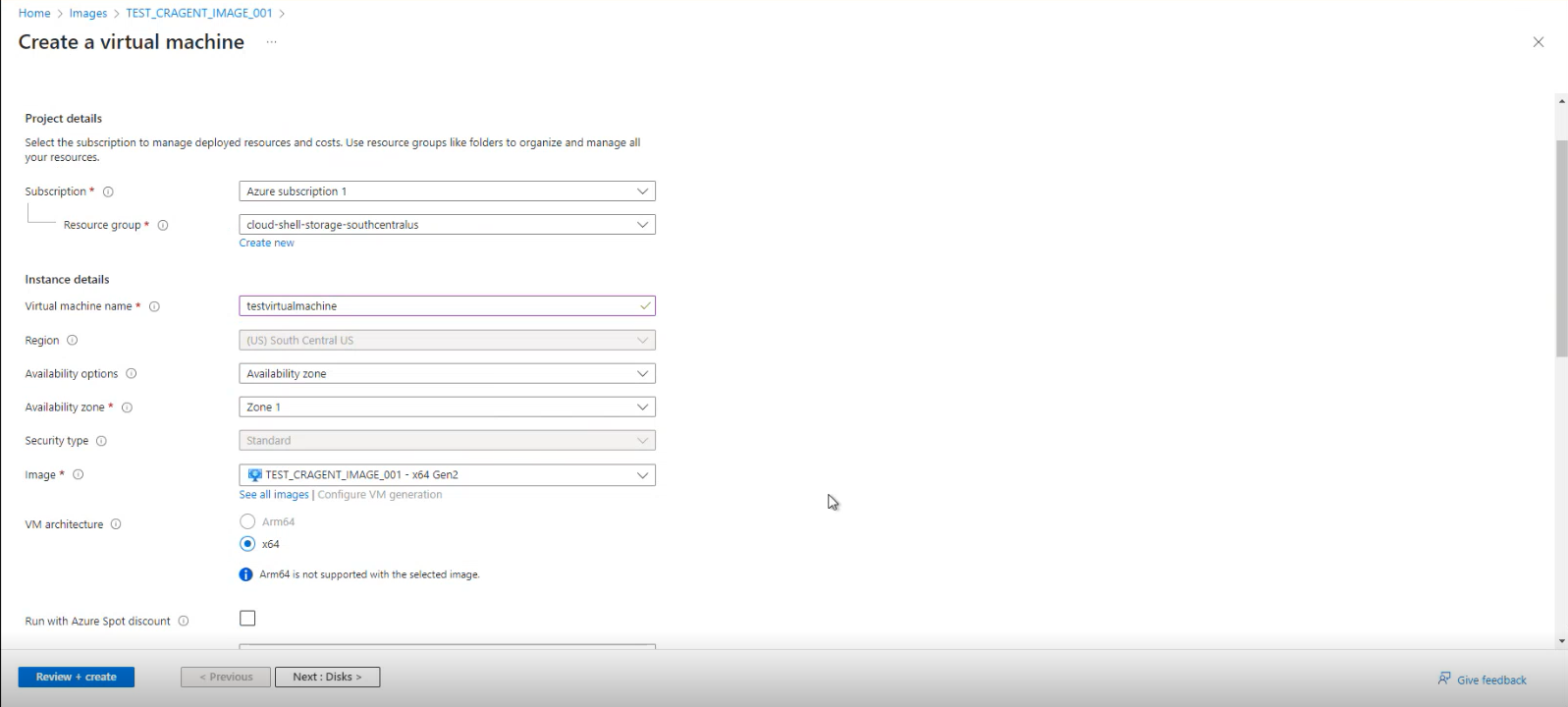

For the creation, note the following:
  • Name the VM however is appropriate for your environment
  • The region will be set to where the image was created
  • Set the availability zone to whatever is best for your environment
  • Confirm the Image selected is the image created above
  • The VM architecture must be left as x64

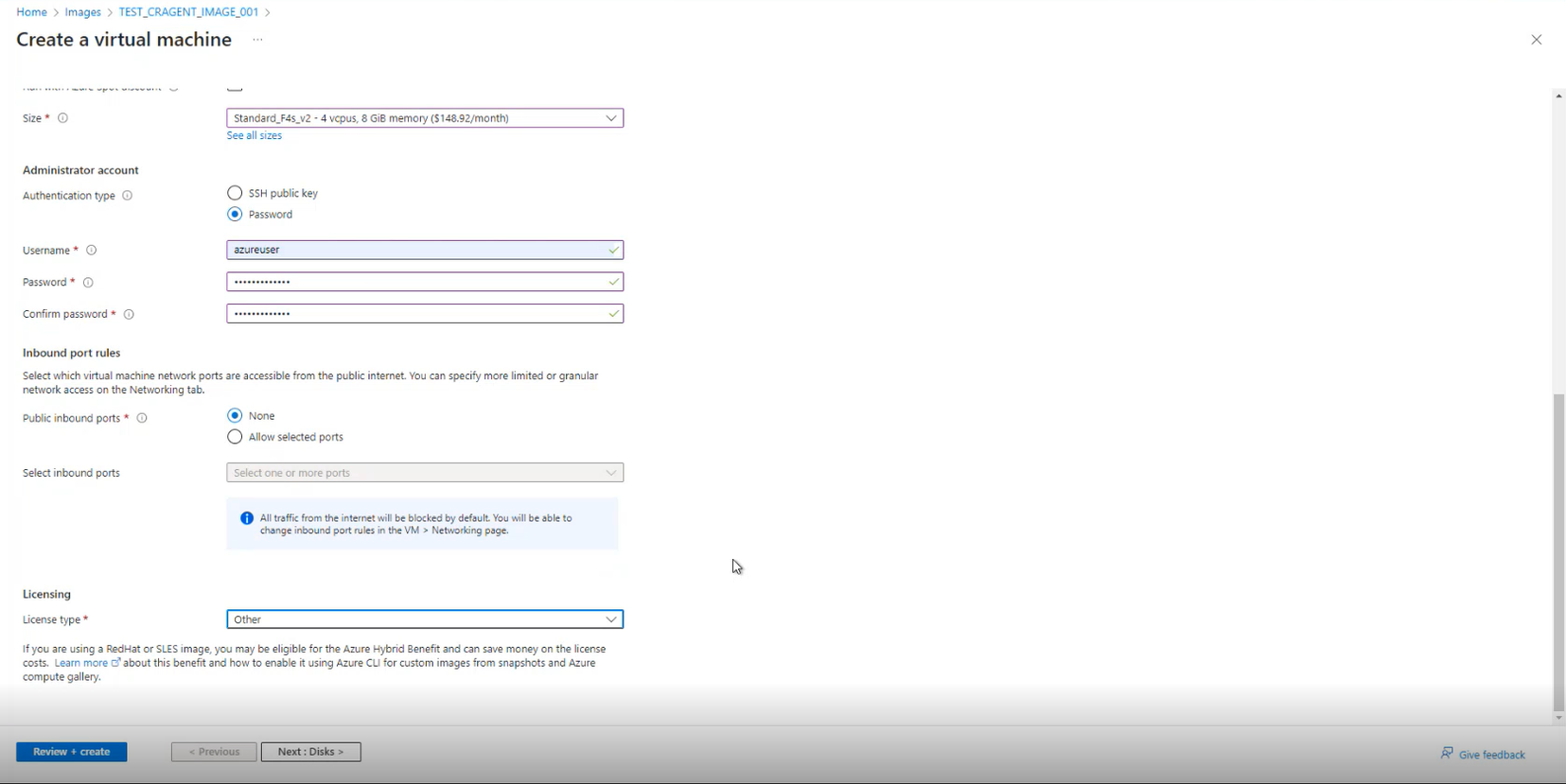

  • For the size, select Standard_F4s_v2
  • The Authentication type must be set to Password
  • The username must must be set to azureuser
  • The password can be set to anything you like
    • Note - this account will not be usable after the installation is complete
  • Public inbound access is recommended to be set to none
  • The license type should be set to other
The disks, networking, management and monitoring settings should be set as best fits for your environment.
Please note - it is important that you do not add any data to the Custom data nor the User data area in the Advanced section.
Tags should be configured as best fits your environment.

​
Registering the Cloud.Red Agent

To register the device, all previous instructions must be complete and a user must be able to reach the agent’s private IP, over HTTPS on port 443, to register the Cloud.Red Agent.

​
Connect to the Agent’s HTTPS Console

In your web browser, visit the IP address of your VM. Accept the potential security risk and continue (this will look different in different browsers)

​
Continue Registration

Follow one of the following methods:
Please contact WorldTech IT to complete the installation.
